Industrial PCs (IPCs)
OSAIcnc Industrial PCs (IPCs) provide reliable performance and seamless integration with OSAI CNC systems. They can operate as a complete system with integrated HMI or as a black box for machine control. Connected via Ethernet, they deliver a high-performance and optimized solution.
All models feature fanless passive cooling, ideal for dusty, vibrating, and space-constrained industrial environments. The range offers multiple computing power configurations to support HMI, CAD, supervision, data analytics, and remote service applications.
Key benefits:
- Fanless and silent operation
- High reliability in industrial environments
- Multiple computing power options
- Supports HMI, CAD, supervision, and data analytics
- Easy installation in confined spaces
- Excellent performance-to-cost ratio
IPC 109A
| CHARACTERISTICS | SPECIFICATIONS |
|---|---|
| PROCESSOR | Intel® Core™ i3-10110U, up to 4.1 GHz |
| MEMORY | 8 GB DDR4 |
| STORAGE | 128 GB mSATA SSD |
| POWER SUPPLY | 12 V DC (9–36 V DC possible) |
| HDMI | 1 × HDMI (1920 × 1200 @ 30 Hz) |
| VGA | 1 × VGA (1920 × 1200 @ 30 Hz) |
| LAN | 2 × Intel® i210, 10/100/1000 Mbps |
| USB 3.0 | 4 × USB 3.0 Type-A |
| USB 2.0 | 2 × USB 2.0 Type-A |
| RS232 | 2 × RS232 |
| RS485 | 1 × RS485 |
| OPERATING SYSTEM | Windows 11 IoT Enterprise LTSC 64-bit |
| CHASSIS | Aluminum chassis with fanless design |
IPC 309A
| CHARACTERISTICS | SPECIFICATIONS |
|---|---|
| PROCESSOR | Intel® Core™ i3-10110U, up to 4.1 GHz |
| MEMORY | 8 GB DDR4 |
| STORAGE | 128 GB mSATA SSD |
| POWER SUPPLY | 12 V DC (9–36 V DC possible) |
| HDMI | 1 × HDMI (1920 × 1200 @ 30 Hz) |
| VGA | 1 × VGA (1920 × 1200 @ 30 Hz) |
| LAN | 2 × Intel® i210, 10/100/1000 Mbps |
| USB 3.0 | 4 × USB 3.0 Type-A |
| USB 2.0 | 2 × USB 2.0 Type-A |
| RS232 | 4 × RS232 |
| RS485 | 2 × RS485 |
| OPERATING SYSTEM | Windows 11 IoT Enterprise LTSC 64-bit |
| CHASSIS | Aluminum chassis with fanless design |
IPC 109A
| CHARACTERISTICS | SPECIFICATIONS |
|---|---|
| PROCESSOR | Intel® Core™ i3-10110U, up to 4.1 GHz |
| MEMORY | 8 GB DDR4 |
| STORAGE | 128 GB mSATA SSD |
| POWER SUPPLY | 12 V DC (9–36 V DC possible) |
| HDMI | 1 × HDMI (1920 × 1200 @ 30 Hz) |
| VGA | 1 × VGA (1920 × 1200 @ 30 Hz) |
| LAN | 2 × Intel® i210, 10/100/1000 Mbps |
| USB 3.0 | 4 × USB 3.0 Type-A |
| USB 2.0 | 2 × USB 2.0 Type-A |
| RS232 | 2 × RS232 |
| RS485 | 1 × RS485 |
| OPERATING SYSTEM | Windows 11 IoT Enterprise LTSC 64-bit |
| CHASSIS | Aluminum chassis with fanless design |
IPC 309A
| CHARACTERISTICS | SPECIFICATIONS |
|---|---|
| PROCESSOR | Intel® Core™ i3-10110U, up to 4.1 GHz |
| MEMORY | 8 GB DDR4 |
| STORAGE | 128 GB mSATA SSD |
| POWER SUPPLY | 12 V DC (9–36 V DC possible) |
| HDMI | 1 × HDMI (1920 × 1200 @ 30 Hz) |
| VGA | 1 × VGA (1920 × 1200 @ 30 Hz) |
| LAN | 2 × Intel® i210, 10/100/1000 Mbps |
| USB 3.0 | 4 × USB 3.0 Type-A |
| USB 2.0 | 2 × USB 2.0 Type-A |
| RS232 | 4 × RS232 |
| RS485 | 2 × RS485 |
| OPERATING SYSTEM | Windows 11 IoT Enterprise LTSC 64-bit |
| CHASSIS | Aluminum chassis with fanless design |

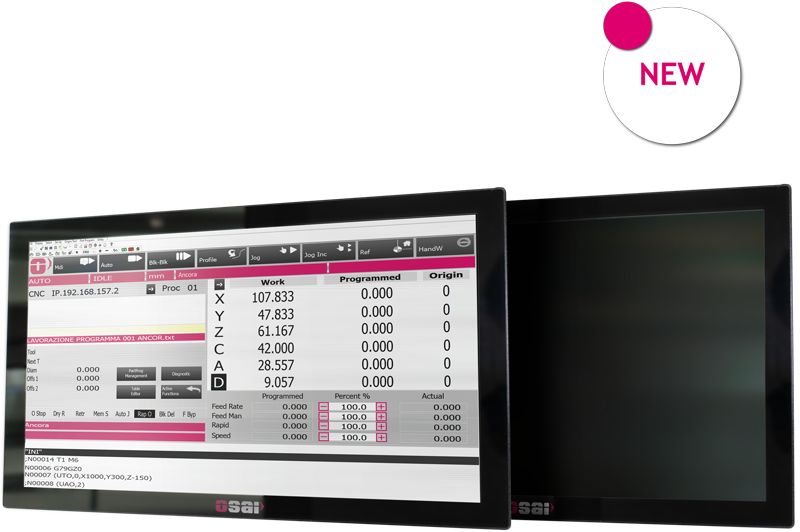

NG Touch Industrial monitors 16:9
OSAIcnc enhances the concept of classical industrial monitors
with the proposal of New Generation devices to the customers.
- Full flat 16:9 monitor
- Capacitive touchscreen
- High contrast for a comfortable vision in any lighting condition
- Compatible with:
– Osai OPENone control unit for easy mounting and all the OSAIcnc numerical control solutions
– Any general-purpose screening application on your machine

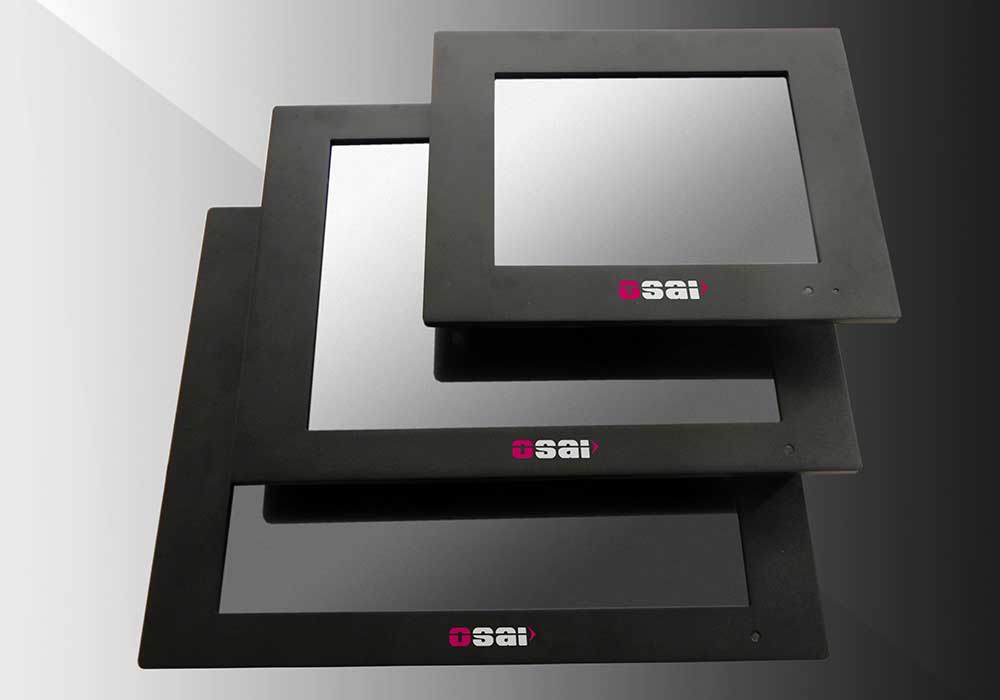

Industrial monitors 4:3
Complete line of industrial monitors for panel mounting, all equipped with a resistive touchscreen, several digital video ports and a solid and light metal frame.
With a format ranging from 10.4”(resolution 800×600) up to 17” (resolution 1280×1024), these monitors suit a wide range of applications and are the perfect complement to OSAI CNCs.
NG Control Panel
The NG Control Panel CP001 expands OSAI’s range of operator interface solutions designed for OPENcontrol CNC systems.
Connection to the CNC via the EtherCAT fieldbus simplifies wiring and enables the automatic management of predefined functions.
Designed for panel mounting, the module features PEM fasteners and a sealing O-ring. Its mechanical design ensures seamless integration with OSAI NG Series touchscreen monitors, particularly the 21.5-inch model, creating a complete and fully integrated operator panel.
COMPACTconsole TS2
The complete panel COMPACTconsole TS2 consists of two modules – “Operator Panel” and “Keyboard” – incorporating a Monitor, Control Panel (functions buttons and selectors), Keyboard, Touchpad and USB port.
COMPACTconsole TS2 is designed for panel mounting and includes:
- 15” Touch Screen Monitor
- Fully customizable Control Panel (default functionality: 8 buttons to select the operation mode, Cycle Start, Hold, Reset plus 3 buttons for general functions)
- 2 customizable rotary selectors (standard functions: spindle and cutting speed override)
- Emergency button kit
- Kit for 2 electromechanical elements (buttons, selectors etc.)
- 1 USB port
OPENwiTP
Light, easy to manage and with an ergonomic design, OPENwiTP is a reliable wireless remote control for CNC-machining centers. OPENwiTP performs the key functions required during machine setup giving the operator direct visual inspection of the area of the machine being controlled. OPENwiTP is SIL3-rated and IEC61508 certified. This one handed ergonomic terminal with a robust design ensures ease of use and safety even in harsh operational environments.
The kit is made up of:
- Teach pendant operator console
- Recharge docking station with connectors
- base station to be installed in the cabinet and a cable for external antenna installation
